Example Notation Constructs



Assignment Writing to a Data Store



Note the flow from the Assignment action process.  The Account signifier flows through this process because a subsequent process requires access to Account after the Account has been updated with the Amount state data.  The flow into a process is determined solely by the requirements of the destination process.

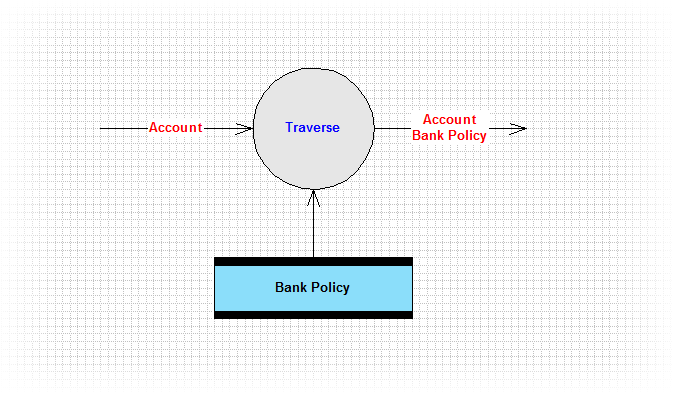

Traverse Reading from a Data Store
